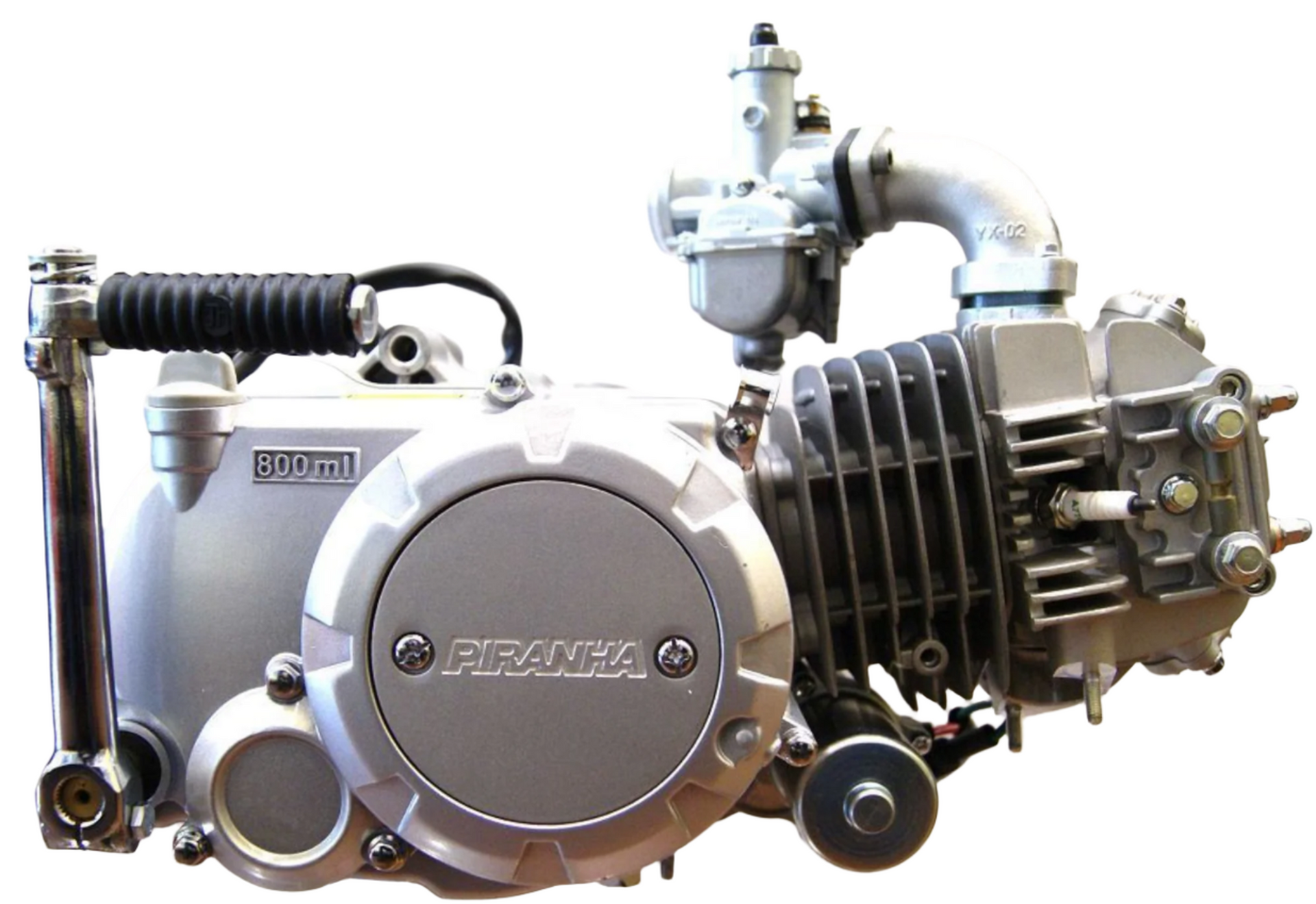

Piranha 140cc Semi-Auto E-Start

Piranha Engines

Motor-3284
$612.00
$612.00 $612.00

Title
Available - Usually ships in 3-5 business days


Description

Piranha 140cc Semi-Auto E-Start

  • Mikuni 22mm Carburetor
  • intake manifold
  • kick starter
  • shifter
  • ignition coil
  • wire harness
  • CDI
  • 4 Speed, 4 up (0,1,2,3,4) gear pattern with Semi-Auto clutch (no hand clutch).
  • Front Drive Sprocket Included
  • will run headlights

Specs

Engine

Displacement

140cc

Engine Type

Air Cooled, Single-Cylinder, 2-valve, 4-stroke

Bore/Stroke

56mm x 57mm

Final Drive

Chain

Fuel Delivery

OEM 22mm

Fuel

Unleaded / 91 Octaine

Reccomended Engine Oil

10W-40 Petroleum Based (Nonsynthetic)

Ignition
Kick Start Yes
Electric Start Yes
CDI Yes
Auxiliary Output (lighting) Yes
Transmission
4-Speed Semi-Auto 4Up
Four-speed Transmission: N-1-2-3-4



Starting Tips

Starting pit bike engines will take some practice. All pit bike engines have relatively high compression ratios and require a "quality over quantity " approach in order to ensure quick start-ups and avoid mechanical mishaps. It is important to follow this routine the first few times when first attempting to start your bike.

  1. Slowly kick the engine over until the kick start reaches a compression stroke (the point in which the kick start lever is hardest to push down.)
  2. Slowly continue to press the kick starter until the engine rotates slightly through the firmest point in the compression stroke.
  3. Allow the kick start lever to return back its top rest position
  4. With a quick and balanced motion - Move down forcefully on the kick lever. These motors need a strong, quick kick to get started.
  5. If you fail to follow this procedure, especially with longer stroke engines or 125cc + bores you can cause serious damage to your crankcase, clutch and transmissions assemblies!

Tips to Avoid kickback

  1. Hold onto the crossbar pad with your throttle hand while kicking the bike over to avoid twisting the throttle open by accident
  2. Before start up - turn the idle screw on the carburetor in a turn or 2 (turn the screw back out to normal idle setting once running.)
  3. Use a digital CDI with variable ignition timing at start-up, this will help reduce kickback and allow the bike to start much easier compared to the stock CDI unit.
  4. If ignition timing is adjustable it should be adjusted to the minimum
  5. Furious, repeated kicking will not get the engine started - firm, full stroke kicks are the only way to get them to start first kick, every time "Quality over Quantity"
  6. The throttle must be completely closed when you kick the engine over or it will kick back EVERY TIME.
  7. A small blip of the throttle may be used when the engine is hot if required but NO more than 10 ° opening of the throttle in any case

Warranty

Crate Engines are sold AS IS with no warranty whatsoever.
